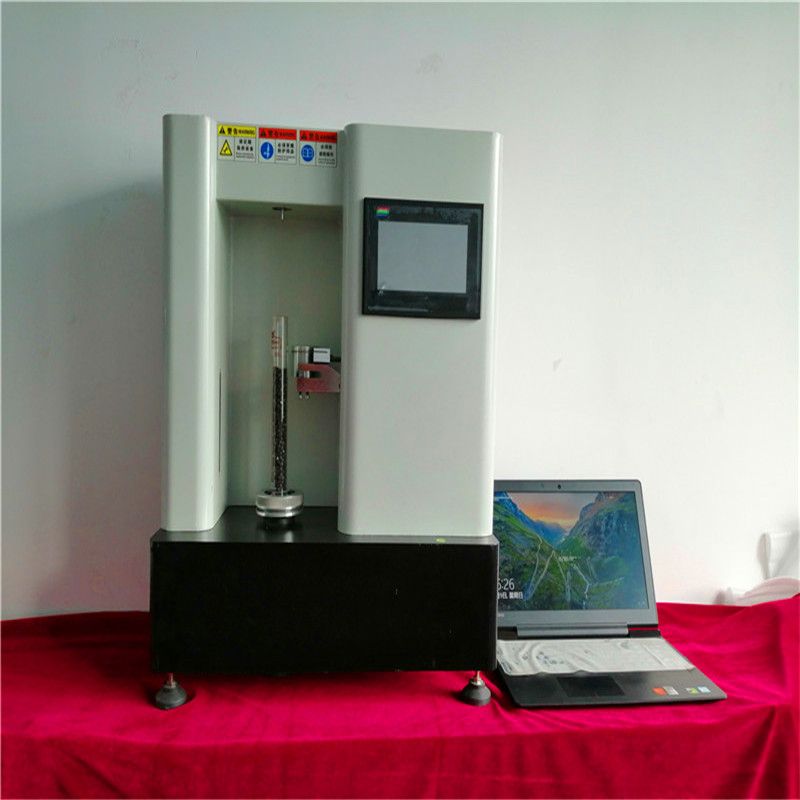

FT-2000A顆粒和粉末特性分析儀
Particle and powder characteristic analyzer |

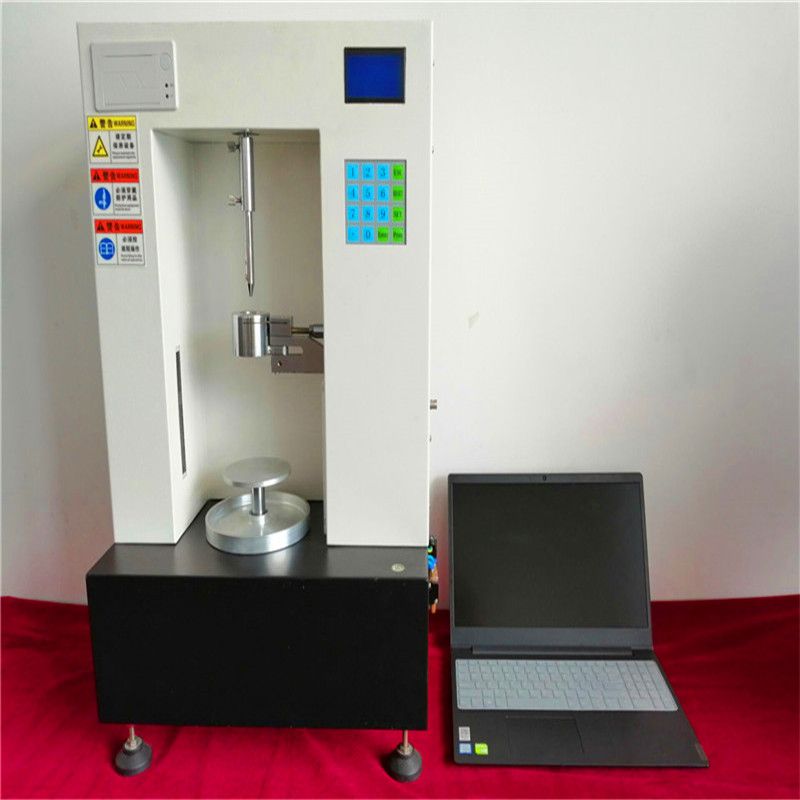

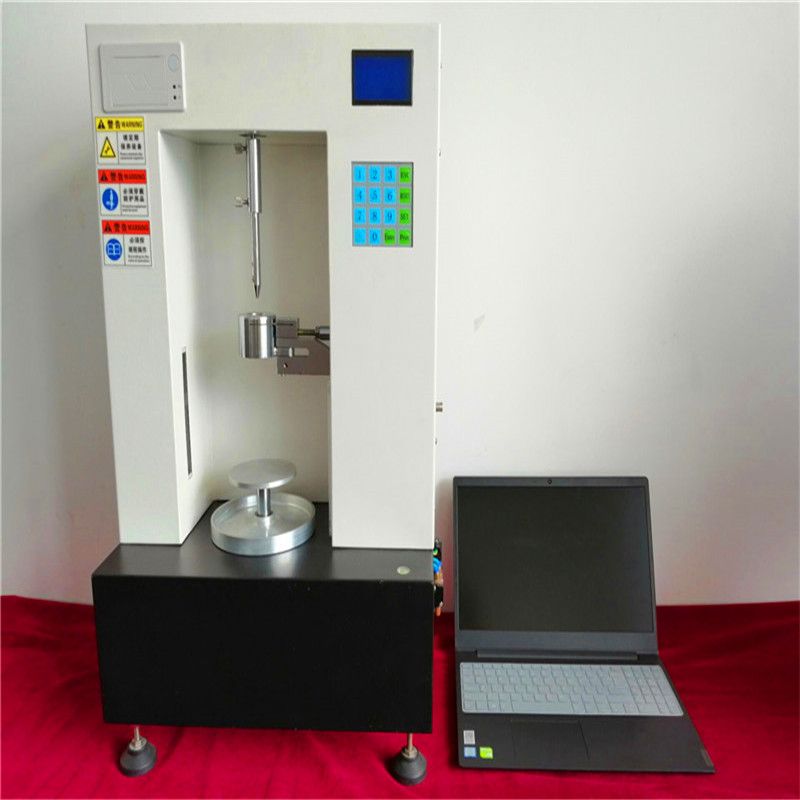

FT-2000B顆粒和粉末特性分析儀
Particle and powder characteristic analyzer |
| No |
功能Function |
量程measuring range |
分辨率
Resolution |
測試方式Test method |
| 1. |
松裝(自然堆積)密度
bulk density |
0-999.9999g/ml |
0.0001g/ml |
1.自動記錄質量，Automatic
2.輸入體積input volume |
| 2. |
振實密度 tap density |
0-999.9999g/ml |
0.0001g/ml |
1.定質量測試 fixed mass test
2.定體積測試Fixed volume test |
| 3. |
安息角（休止角）
Angel of repose |
0-90度degree |
0.01度degree |
1.自動計算automaticcalculation
2.PC軟件過程數據曲線PC software process data curve |
| 4. |
質量流速mass flow velocity
|
0-9999.999g/s |
0.001 g/s |
1.自動計時并停止Automatic time
2.自帶稱重平臺weighing
3. PC軟件過程數據曲線PC software process data curve |
| 5. |
體積流速
volume flow rate
|
0-9999.999ml/s |
0.001 ml/s |
1.自動計時及停止Automatic timer
2.自帶稱重平臺weighing platform
3. PC軟件過程數據曲線PC software process data curve |
| 6. |
崩潰角 Angle of collapse |
0-90° |
0.01° |
1.自動計算automatic calculation
2.PC軟件過程數據曲線PC software process data curve |
| 7. |
平板角Flat Angle |
0-90° |
0.01° |
1.自動計算automatic calculation
2.PC軟件過程數據曲線PC software process data curve |
| 8. |
空隙率Voidage |
0-99.99% |
0.01% |
|
| 9. |
時間 time |
0-99999S |
0.01s |
自動Automatic |
| 10. |
差角angle of difference |
0-90° |
0.01° |
自動Automatic |
| 11. |
分散性dispersibility |
0-99.99% |
0.01% |
自動Automatic |
| 12. |
稱量平臺Weighing |
0-2000.0g |
0.01g |
自動Automatic |
| 13. |
漏斗容積 funnel volume |
200ml |
|
|
| 14. |
不銹鋼量杯選購
Stainless steel cup |
25ml、100ml、200ml、250ml、500ml |
（標配1個）
(standard configuration 1pcs) |
| 15. |
圓盤 disc |
直徑100mm和64mm（少量樣品測量）Diameter 100 mm and 64 mm (a small amount of sample measurement) |
休止角測量
To measure the Angle of repose |
| 16. |
攪拌裝置stirring |
固定轉速constant rotational speed |
自動Automatic |
| 17. |
漏斗出口口徑mm
Funnel outlet diameter |
2.5；4.0；5.0；6.0；7.0；8.0；9.0；10；14；15；16；17；18；25 |
選購孔徑（標配5個）可更換結構
Optional aperture (standard 5) replaceable structure |
| 18. |
出口配有控制閥門
control valve |
氣動控制Pneumatic control |
自動，氣源客戶自備Automatic, the gas customers are prepared |
| 19. |
振實密度玻璃量筒
Vibration density glass cylinder |
1）25ml，刻度高H:135mm，間距spacing 1ml
2）100ml，刻度高H:175mm，質量mass 130±16g
3）250ml，質量mass220±40g |
量筒固定座質量450±20g
a fixed seat mass |
| 20. |
顯示器display |
7寸觸摸屏7 Inch Touch Screen |
|
| 21. |
溫濕度范圍Temperature humidity range |
18-40℃ 相對濕度在35-80%
relative humidity |
自動Automatic |
| 22. |
流動指數Flow index |
自動轉化流動指數數據Automatic conversion flow index data |
自動Automatic |
| 23. |
輸入電源Input power |
220V±10% 常溫環境下使用Normal temperature environment |
|
| 24. |
PC軟件Software |
軟件1套；電腦打印機客戶自備.
1 sets of software; Computer and printer offered by customer. |
|
| 25 |
振動篩分粒度儀
Vibration sieving particle sizer |
篩網目數42目，60目，100目，200目325目滿足卡爾指數要求
The sieve mesh 42 mesh, 60 mesh, 100 mesh, 200 mesh 325 mesh to meet the requirements of the Carle index. |
均齊度和凝聚度測量
Homogeneity and cohesion measurement |
| |
